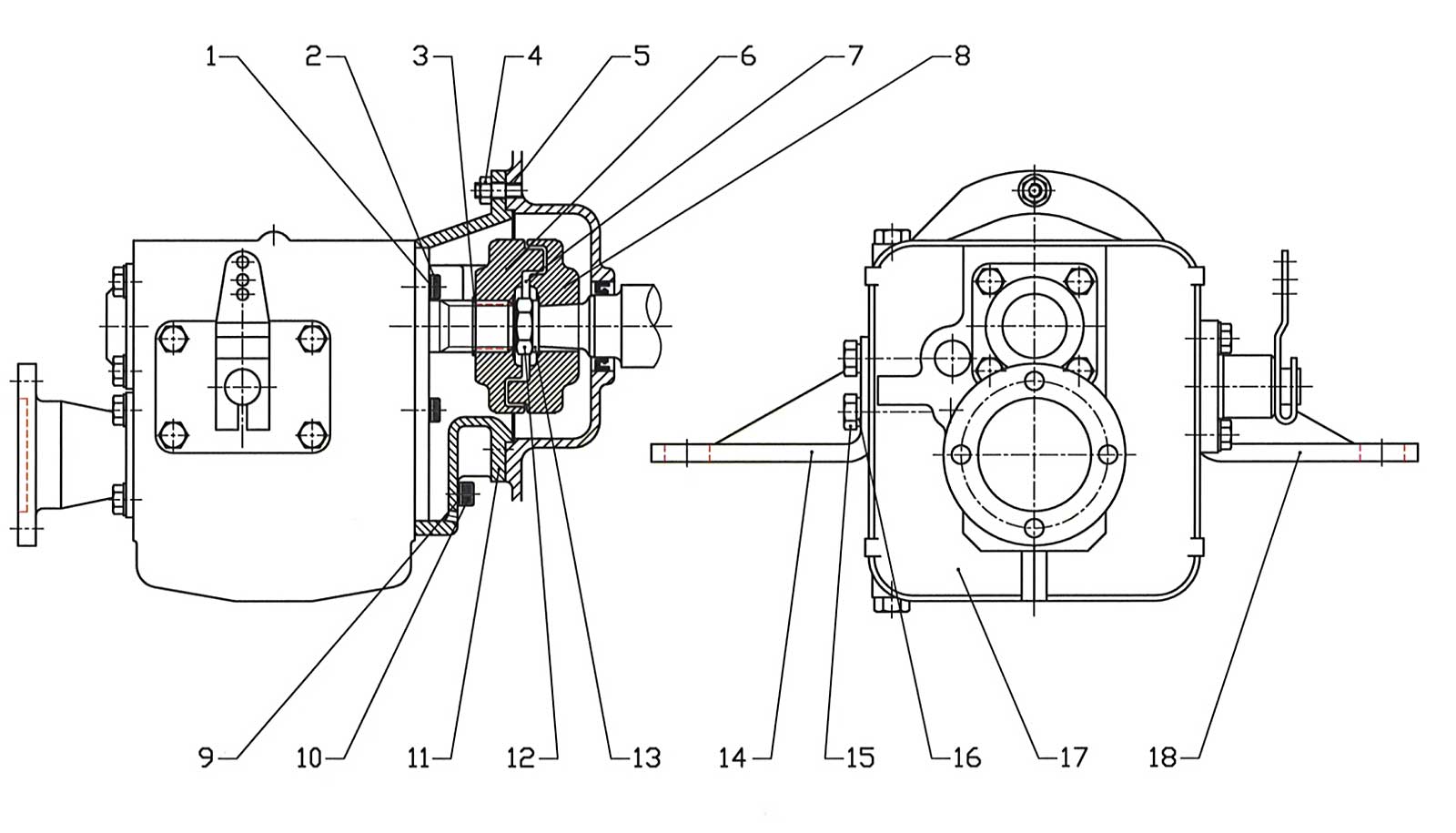

20. Mounting of reversing gear M 60
| Pos. |
Part No. |
Qty. |
Description |
| 1 |
522F7021 |
4 |
Rifted plate spring washer, 8 mm |
| 2 |
501F2363 |
4 |
Unbrakoskrue M8x20 DIN7984 |
| 3 |
522A1029 |
1 |
Locking ring ø29 |
| 4 |
510A1208 |
5 |
Nut M8 |
| 5 |
503N2363 |
5 |
Stud M8x20 |
| 6 |
000E7531 |
1 |
Flexible coupling with spline |
| 7 |
000E6036 |
1 |
Coupling element |
| 8 |
000E6037 |
1 |
Flexible coupling with cone |
| 9 |
522F7021 |
2 |
Rifted plate spring washer, 8 mm |
| 10 |
501A2367 |
2 |
Unbrako screw M8x35 DIN912 |
| 11 |
000E9790 |
1 |
Intermediate cover |
| 12 |
510B2308 |
1 |
Nut MF18x1,5 |
| 13 |
522E0542 |
1 |
Nord-lock washer ø18 |
| 14 |
008E7084 |
1 |
Engine support rear BB |
| 15 |
500C2415 |
4 |
Set screw M10x25 DIN933 |
| 16 |
522F1023 |
4 |
Spring washer 10 mm DIN7980 |
| 17 |
620A5000 |
1 |
Gearbox 2.94:1 |
| 17 |
620A5100 |
1 |
Gearbox 2.5:1 |
| 18 |
008E7086 |
1 |
Engine support rear SB |
