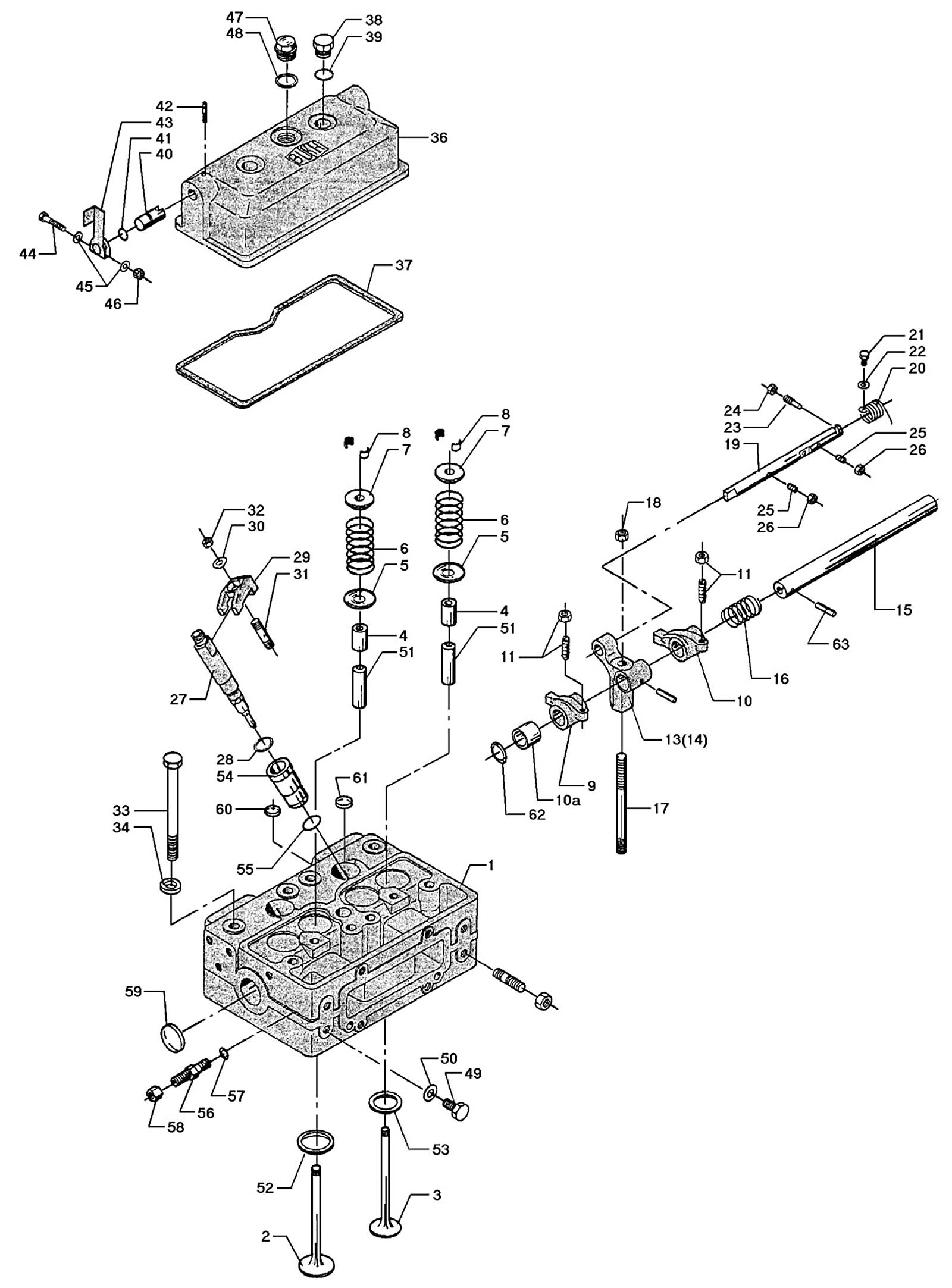

4. Cylinder head and valves
| Pos. | Part No. | Qty. | Description |
|---|---|---|---|
| 1 | 032D0419 | 1 | Cylinderhead with valve guides and seats |
| 2 | 000E4887 | 2 | Inlet valve |
| 3 | 000E4888 | 2 | Exhaust valve |
| 4 | 562J0000 | 4 | Seal for valve |
| 5 | 000E4890 | 4 | Disc for valve spring |
| 6 | 000E4891 | 4 | Valve spring |
| 7 | 000E5014 | 4 | Spring guide |
| 8 | 522V0009 | 8 | Conical lock for valve |
| 9 *) | 2 | Rocker arm, right with bush | |
| 10 *) | 2 | Rocker arm, left with bush | |
| 10a *) | 4 | Bush for rocker arm | |
| 11 *) | 4 | Adjusting screw with nut | |
| 13 *) | 1 | Stanchion for rocker arm | |
| 14 *) | 1 | Stanchion for rocker arm | |
| 15 *) | 1 | Shaft for rocker arms | |
| 16 *) | 1 | Distance spring | |
| 17 | 503N2426 | 2 | Stud |
| 18 | 510A1209 | 2 | Nut |
| 19 *) | 1 | Shaft for valve lifter | |
| 20 *) | 1 | Rotary spring for valve lifter | |
| 21 | 500C2310 | 1 | Set screw, DIN 933 |
| 22 | 522C1219 | 1 | Washer, DIN 433 |
| 23 *) | 1 | Headless screw | |
| 24 | 510A1207 | 1 | Nut, DIN 934 |
| 25 *) | 2 | Threaded pin, DIN 913 | |
| 26 | 510A1206 | 2 | Nut, DIN 934 |
| 27 | 610B9220 | 2 | Nozzle, complete |
| 28 | 522C3082 | 2 | Gasket, copper |
| 29 | 000E4904 | 2 | Clamp dog for nozzle holder |
| 30 | 522C8008 | 2 | Ball washer |
| 31 | 503N2368 | 2 | Stud |
| 32 | 510A1208 | 2 | Nut |
| 33 | 500N2480 | 8 | Machine bolt |
| 34 | 000E4557 | 7 | Washer |
| 36 | 000E7667 | 1 | Cylinder head cover |
| 37 | 000E7668 | 1 | Gasket for cover |
| 38 | 000E4912 | 2 | Nut for cover |
| 39 | 560F0013 | 2 | O-ring, RM 0136-24 |
| 40 | 000E4913 | 1 | Driving shaft for valve lifter |
| 41 | 560F0009 | 1 | O-ring, RM 0096-24 |
| 42 | 520G1260 | 1 | Cylindric pin, DIN 7 |
| 43 | 000E4914 | 1 | Decompression handle |
| 44 | 500D2317 | 1 | Machine bolt, DIN 931 |
| 45 | 522C1219 | 2 | Washer, DIN 433 |
| 46 | 510A1207 | 1 | Nut, DIN 934 |
| 47 | 000E3959 | 1 | Bottom plug, steel |
| 48 | 522C3033 | 1 | Gasket, copper |
| 49 | 500C2411 | 2 | Set screw, DIN 933 |
| 50 | 522C3014 | 2 | Gasket, copper DIN 7603A |
| 51 | 000E4878 | 4 | Valve guide |
| 52 | 000E4876 | 2 | Valve seat ring, inlet |
| 53 | 000E4877 | 2 | Valve seat ring, exhaust |
| 54 | 000E4880 | 2 | Insert for nozzle holder |
| 55 | 560F0021 | 2 | O-ring |
| 56 | 531Z0052 | 1 | Banjo bolt |
| 57 | 522C3012 | 3 | Gasket, copper |
| 58 | 531Z0221 | 1 | Pipe bushing |
| 59 | 539A0173 | 2 | Cover lid |
| 60 | 539A0166 | 2 | Cover lid |
| 61 | 539A0162 | 1 | Cover lid |
| 62 *) | 2 | Spring disc | |
| 63 *) | 2 | Retaining pin |
Rocking lever arrangement, complete
*) Only available as complete rocking lever arrangement
