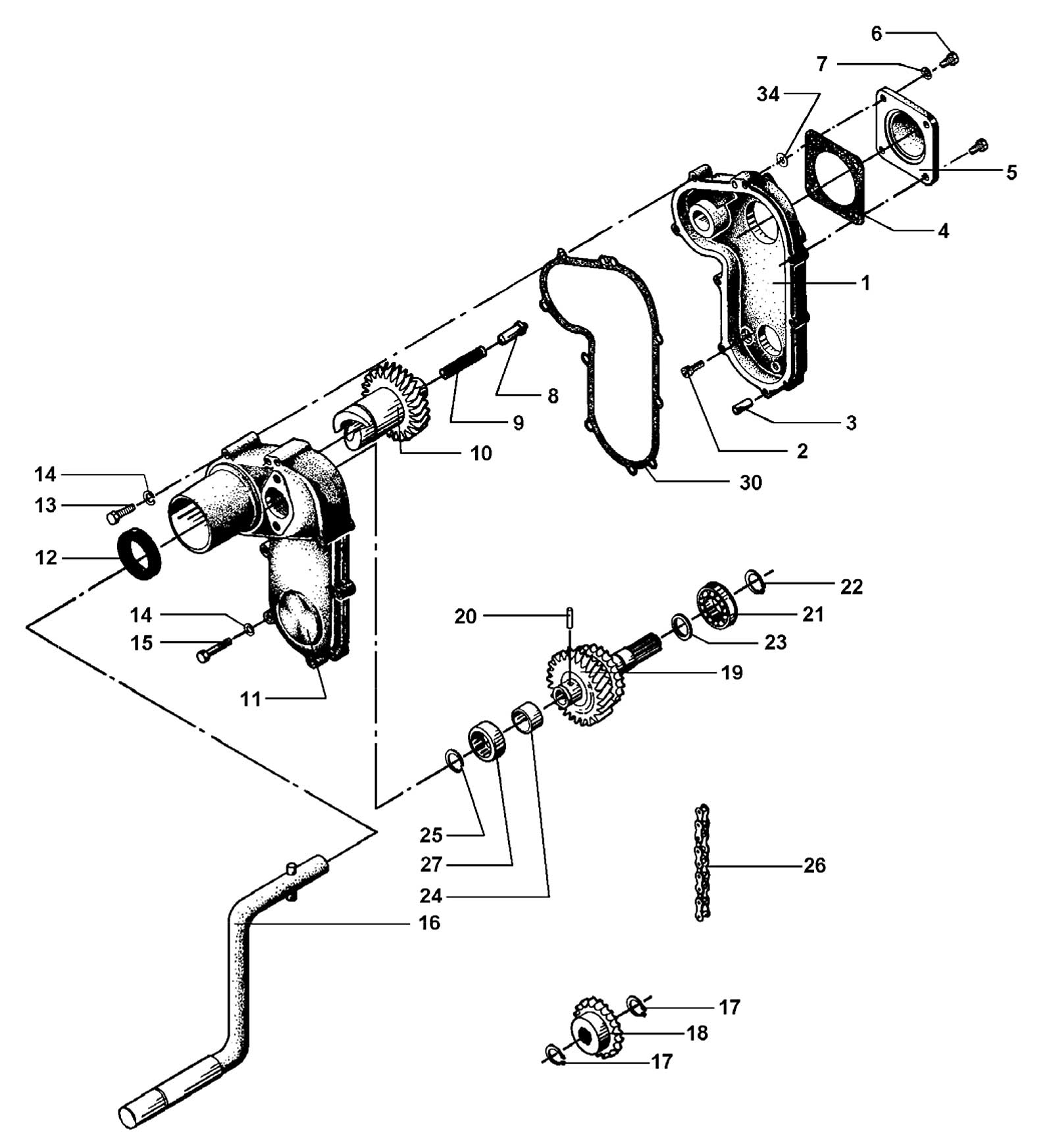

| Pos. |
Part No. |
Qty. |
Description |
| 1 |
000E0890 |
1 |
Chain box, half |
| 2 |
501F2361 |
4 |
Unbraco screw M8x16 DIN 7984 |
| 3 |
520E3512 |
2 |
Cylindric pin |
| 4 |
000E0054 |
1 |
Gasket |
| 5 |
000E2418 |
1 |
Cover for chain box |
| 6 |
500C2311 |
4 |
Set screw M6x16 DIN 933 |
| 7 |
522F1017 |
4 |
Spring washer 6 mm DIN 7980 |
| 8 |
000E0894 |
1 |
Spring guide |
| 9 |
000E0025 |
1 |
Spring for starting handle claw |
| 10 |
008E0068 |
1 |
Starting handle claw with gearwheel |
| 11 |
000E0017 |
1 |
Chain box, half |
| 12 |
561B0350 |
1 |
Seal ring SMIM 3545/7 |
| 13 |
500D2320 |
4 |
Machine bolt M6x50 DIN 931 |
| 14 |
522C1219 |
8 |
Washer |
| 15 |
500D2316 |
4 |
Machine bolt M6x30 DIN 931 |
| 16 |
008E0059 |
1 |
Starting handle |
| 17 |
522A1017 |
2 |
Circlip 17 DIN 471 |
| 18 |
000E0031 |
1 |
Chain wheel |
| 19 |
008E3025 |
1 |
Shaft with chain- and gearwheel |
| 20 |
000E0024 |
2 |
Cylindric pin |
| 21 |
545A1366 |
1 |
Ball bearing SKF 6204 NR |
| 22 |
522A1020 |
1 |
Circlip 20 DIN 471 |
| 23 |
522A9016 |
1 |
Support washer SS 20x28x2 |
| 24 |
545V3320 |
1 |
Inner collar LR 20x25x12.5 |
| 25 |
522A9516 |
1 |
Spring ring SW 20 |
| 26 |
542K0055 |
1 |
Chain for hand starting |
| 27 |
545V0032 |
1 |
Needle bush HK 2512 |
| 30 |
000E0053 |
1 |
Gasket for chain box |
| 34 |
000E0055 |
1 |
Gasket |
