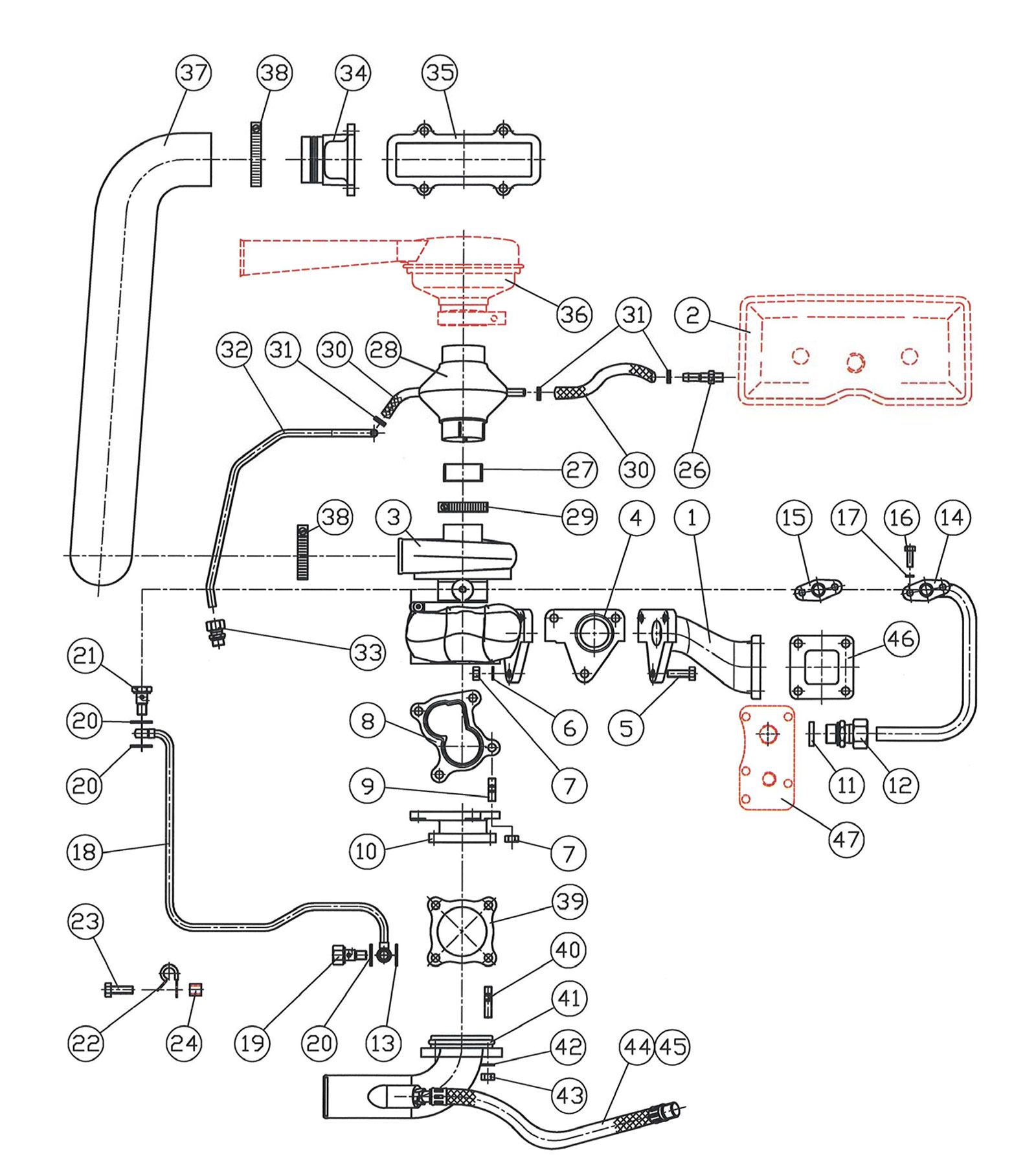

8. Air inlet and turbocharger
| Pos. | Part No. | Qty. | Description |
|---|---|---|---|
| 1 | 000E9765 | 1 | Pipe for turbocharger |
| 2 | 008E9345 | 1 | Valve cover |
| 3 | 611L0150 | 1 | Turbocharger |
| 4 | 611L0102 | 1 | Gasket for turbocharger |
| 5 | 500K2366 | 3 | Set screw, M8x30, stainless |
| 6 | 522C1223 | 3 | Washer M8 |
| 7 | 511F0258 | 7 | Nut M8, self-locking stainless |
| 8 | 611L0101 | 1 | Gasket for intermediate flange |
| 9 | 503N2361 | 4 | Stud M8x16 |
| 10 | 000E9595 | 1 | Intermediate flange |
| 11 | 000E8996 | 1 | Packing |
| 12 | 533C0272 | 1 | Hexagon nipple |
| 13 | 522C3015 | 1 | Copper gasket, ø10/ø16×1 |
| 14 | 008E9763 | 1 | Return pipe from turbocharger |
| 15 | 000E8074 | 1 | Gasket for return pipe |
| 16 | 500C2311 | 2 | Set screw, M6x16 |
| 17 | 522F1017 | 2 | Spring washer M6 |
| 18 | 008E9158 | 1 | Lubr. pipe for turbocharger |
| 19 | 000E9164 | 1 | Banjo bolt |
| 20 | 522C3016 | 3 | Copper gasket, ø12/ø15.5×1.5 |
| 21 | 531Z0160 | 1 | Banjo bolt |
| 22 | 544A0312 | 1 | Saddle |
| 23 | 500C2365 | 1 | Set screw, M8x25 |
| 24 | 000E8138 | 1 | Distance pipe |
| 26 | 532V0041 | 1 | Hose nipple |
| 27 | 000E9598 | 1 | Bushing |
| 28 | 008E9391 | 1 | Intermediate pipe |
| 29 | 569A0030 | 1 | Clamping ring, ø33/ø57 |
| 30 | 530P0009 | 1 | Hose |
| 31 | 569A0010 | 4 | Clamping ring, ø6/ø16 |
| 32 | 000E9395 | 1 | Return pipe from oil trap |
| 33 | 533A0213 | 1 | Hexagon nipple |
| 34 | 000E9160 | 1 | Inlet pipe branch |
| 35 | 000E9681 | 1 | Gasket for air inlet |
| 36 | 008E7310 | 1 | Air filter |
| 37 | 000E9144 | 1 | Turbocharger hose |
| 38 | 569A0035 | 2 | Clamping ring, ø48/ø70 |
| 39 | 000E6451 | 1 | Gasket for exhaust |
| 40 | 503N2367 | 4 | Stud M8x35 |
| 41 | 008E9276 | 1 | Exhaust bend |
| 42 | 522F1020 | 4 | Spring washer M8 |
| 43 | 510A3208 | 4 | Nut M8, brass |
| 44 | 008E9351 | 1 *1 | Cooling water hose |
| 45 | 008E9324 | 1 *2 | Cooling water hose |
| 46 | 000D9762 | 1 | Gasket for exhaust |
| 47 | 000E9159 | 1 | Cover for governor |
*1 Direct cooling
*2 Heat exchanger cooling
