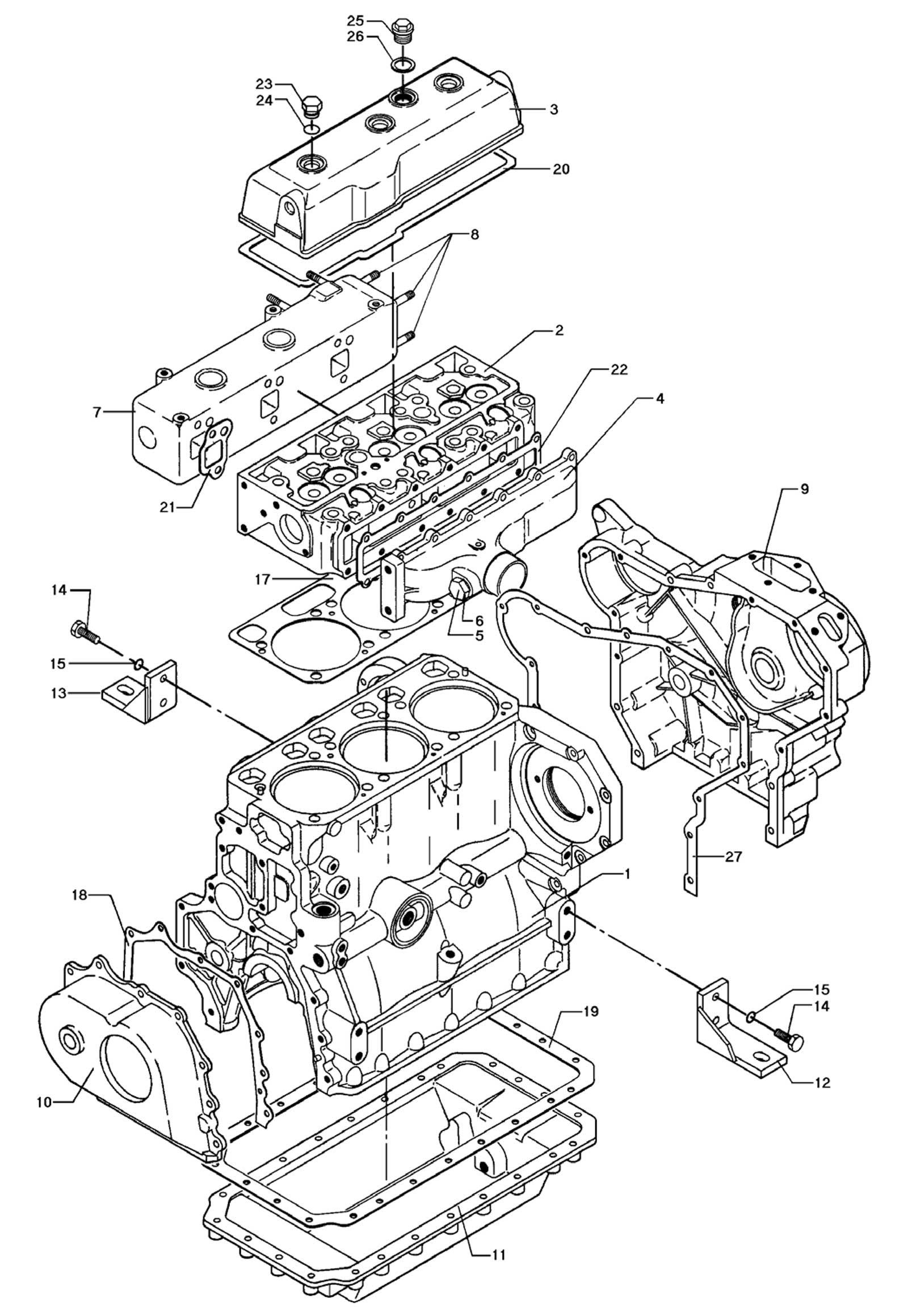

1. Crankcase, cylinder head and covers
| Pos. |
Part No. |
Qty. |
Description |
| 1 |
033D0204 |
1 |
Crankcase, complete |
| 2 |
033D0401 |
1 |
Cylinderhead, complete |
| 3 |
000E4910 |
1 |
Cylinder head cover |
| 4 |
000E4923 |
1 |
Intake manifold |
| 5 |
009R2013 |
1 |
Screw plug ½" BSP |
| 6 |
522C3031 |
1 |
Gasket |
| 7 |
000E9269 |
1 |
Water-cooled exhaust manifold |
| 8 |
503N2367 |
4 |
Stud, M8x35 |
| 9 |
000E4814 |
1 |
End cover, rear |
| 10 |
000E4815 |
1 |
End cover, front |
| 11 |
000E6954 |
1 |
Oil sump |
| 12 |
008E5203 |
2 |
Engine support, left |
| 13 |
008E5201 |
2 |
Engine support, right |
| 14 |
500C2416 |
8 |
Set screw, M10x30 DIN 933 |
| 15 |
522F1023 |
8 |
Spring washer, 10 mm DIN 7980 |
| 17 |
000E4789 |
1 |
Cylinder head gasket |
| 18 |
000E4817 |
1 |
Gasket for front end cover |
| 19 |
000E4783 |
1 |
Gasket for oil sump |
| 20 |
000E4911 |
1 |
Gasket for cover |
| 21 |
000E5028 |
1 |
Gasket for exhaust manifold |
| 22 |
000E5025 |
1 |
Gasket for intake manifold |
| 23 |
000E4912 |
3 |
Nut for cover |
| 24 |
560F0013 |
3 |
O-ring |
| 25 |
000E3959 |
1 |
Locking screw |
| 26 |
522C3033 |
1 |
Gasket |
| 27 |
000E4816 |
1 |
Gasket for rear end cover |
|
033D4201 |
1 |
Set of gaskets, complete |
|
033D4203 |
1 |
Set of gaskets for valve grinding |
