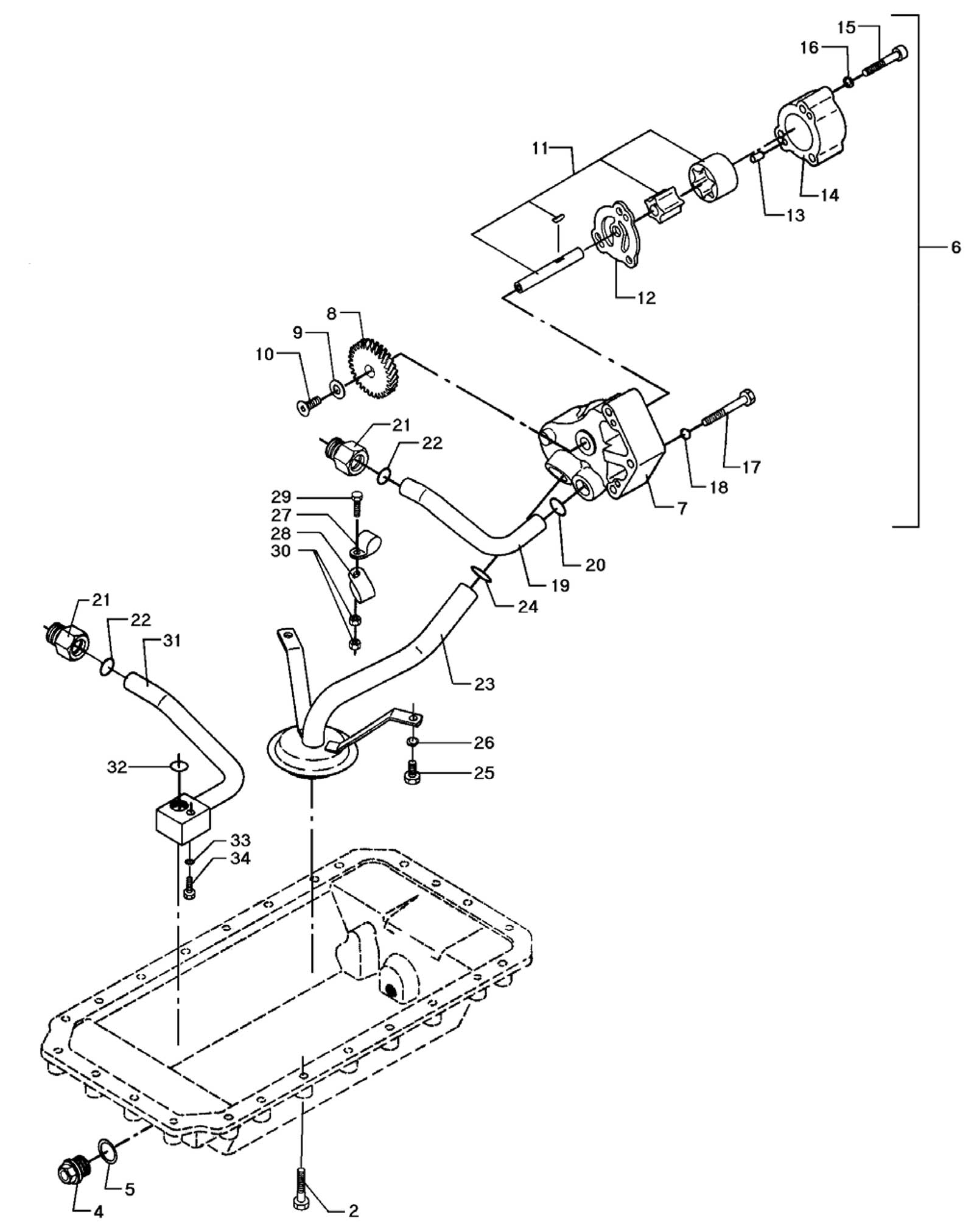

10. Lubrication pump with pipes
| Pos. |
Part No. |
Qty. |
Description |
| 2 |
500C2367 |
24 |
Set screw |
| 4 |
504E1120 |
1 |
Plug |
| 5 |
522C3044 |
1 |
Gasket, copper |
| 6 |
033D1302 |
1 |
Luboil pump complete |
| 7 |
000E4927 |
1 |
Bearing half f. luboil pump |
| 8 |
000E4777 |
1 |
Gearwheel for luboil pump |
| 9 |
000E5159 |
1 |
Washer |
| 10 |
501E2361 |
1 |
Countersunk screw |
| 11 |
008E5032 |
1 |
Shaft and rotor |
| 12 |
000E5033 |
1 |
Intermediate plate |
| 13 |
520G1307 |
2 |
Cylindric pin |
| 14 |
000E4928 |
1 |
Casing for luboil pump |
| 15 |
501A2368 |
3 |
Unbraco screw |
| 16 |
522F1020 |
3 |
Spring washer |
| 17 |
500D2371 |
3 |
Machine bolt |
| 18 |
522F1020 |
3 |
Spring washer |
| 19 |
000E5039 |
1 |
Pressure pipe, oil pump |
| 20 |
560F0017 |
1 |
O-ring |
| 21 |
000E5042 |
2 |
Nipple for oil pipe |
| 22 |
560F0017 |
2 |
O-ring |
| 23 |
008E5053 |
1 |
Suction pipe and oil strain compl |
| 24 |
560F0020 |
1 |
O-ring |
| 25 |
500C2361 |
2 |
Set screw |
| 26 |
522F1020 |
2 |
Spring washer |
| 27 |
551D0121 |
1 |
Saddle |
| 28 |
551D0126 |
1 |
Saddle |
| 29 |
500D2316 |
1 |
Machine bolt |
| 30 |
510A1207 |
2 |
Nut |
| 31 |
008E7523 |
1 |
Pressure pipe |
| 32 |
560B0016 |
1 |
O-ring |
| 33 |
522F1020 |
1 |
Spring washer |
| 34 |
500C2366 |
1 |
Set screw |
