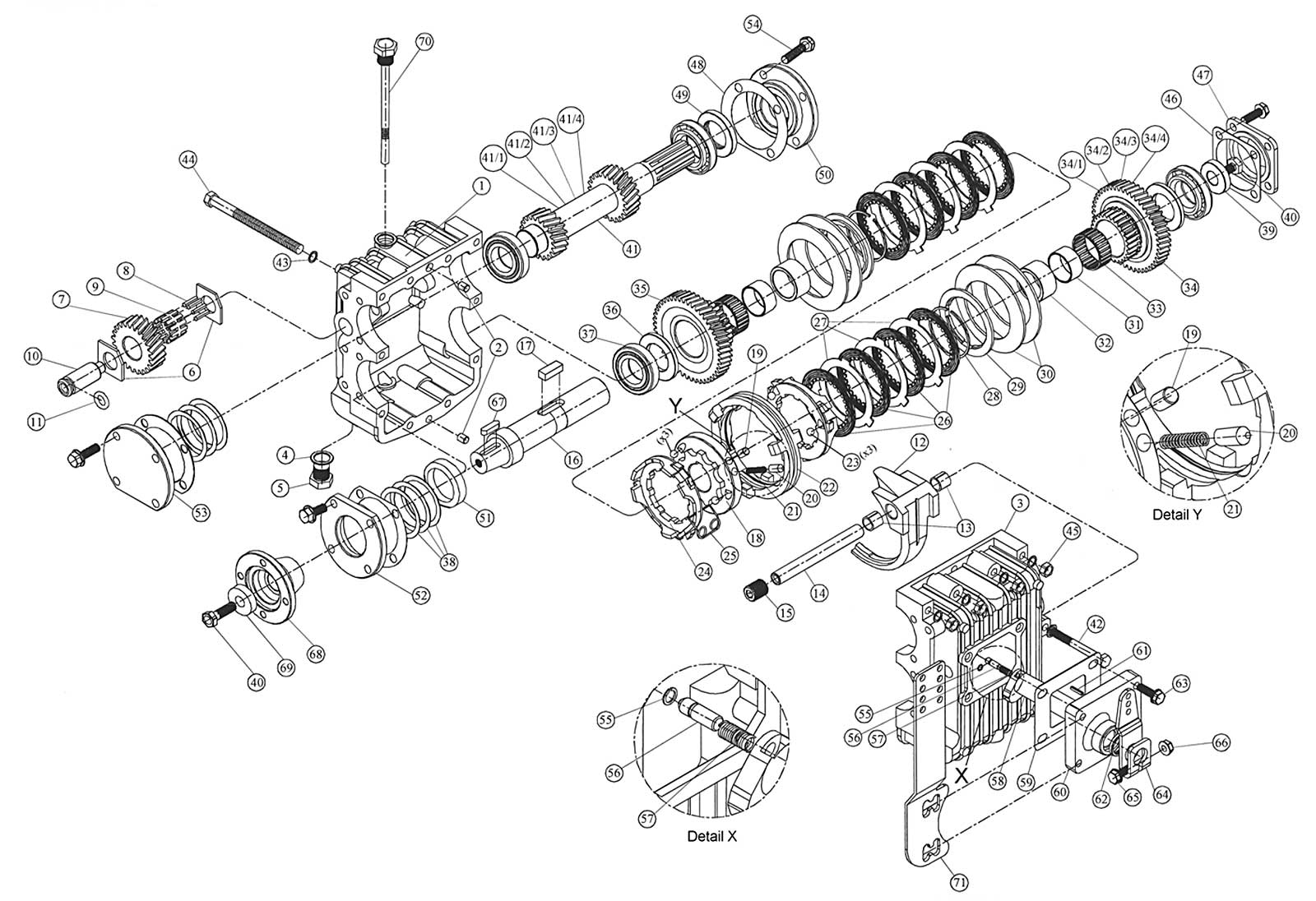

15. Reversing gear M 60
| Pos. | Part No. | Qty. | Description |
|---|---|---|---|
| 1 | M60-01 | 1 | Gearcase, left |
| 2 | M60-02 | 2 | Pin ø8×14 |
| 3 | M60-03 | 1 | Gearcase, right |
| 4 | M60-04 | 2 | Washer |
| 5 | M60-05 | 1 | Oil drain plug |
| 6 | M60-06 | 2 | Flake |
| 7 | M60-07 | 1 | Intermediate gear |
| 8 | M60-08 | 24 | Needle bearing |
| 9 | M60-09 | 1 | Needle bearing cage |
| 10 | M60-10 | 1 | Pin |
| 11 | M60-11 | 1 | O-ring ø14×3 |
| 12 | M60-12 | 1 | Shifting fork |
| 13 | M60-13 | 2 | Plain bush |
| 14 | M60-14 | 1 | Fork shaft |
| 15 | M60-15 | 1 | Screw plug |
| 16 | M60-16 | 1 | Output shaft |
| 17 | M60-17 | 1 | Feder Key |
| 18 | M60-18 | 1 | Guide sleeve |
| 19 | M60-19 | 3 | Pin ø8×16 |
| 20 | M60-20 | 3 | Detent pin |
| 21 | M60-21 | 3 | Compression spring |
| 22 | M60-22 | 1 | Actuating sleeve |
| 23 | M60-23 | 6 | Ball bearing ø8 |
| 24 | M60-24 | 2 | Disc carrier |
| 25 | M60-25 | 3 | Spring |
| 26 | M60-26 | 8 | Friction disc |
| 27 | M60-27 | 6 | Clutch disc |
| 28 | M60-28 | 2 | Circlip |
| 29 | M60-29 | 2 | Thrust ring |
| 30 | M60-30 | 4 | Torsional spring |
| 31 | M60-31 | 2 | Neddle bearing inner race |
| 32 | M60-32 | 2 | Spacer |
| 33 | M60-33 | 2 | Needle cage |
| 34 | M60-34 | 1 | Forward gear 1.55:1 ratio |
| 34/1 | M60-34/1 | 1 | Forward gear 2.13:1 ratio |
| 34/2 | M60-34/2 | 1 | Forward gear 2.63:1 ratio |
| 34/3 | M60-34/3 | 1 | Forward gear 2.88:1 ratio |
| 34/4 | M60-34/4 | 1 | Forward gear 2.94:1 ratio |
| 35 | M60-35 | 1 | Reverse gear 1.95:1 ratio |
| 36 | M60-36 | 2 | Spacer, (Forward, Reverse) |
| 37 | M60-37 | 4 | Taper roller bearing |
| 38 | M60-38 | AR* | Shim |
| 39 | M60-39 | 1 | Spacer |
| 40 | M60-40 | 2 | Hex head screw, M12x30 |
| 41 | M60-41 | 1 | Input shaft 1.55:1 |
| 41/1 | M60-41/1 | 1 | Input shaft 2.13:1 |
| 41/2 | M60-41/2 | 1 | Input shaft 2.63:1 |
| 41/3 | M60-41/3 | 1 | Input shaft 2.88:1 |
| 41/4 | M60-41/4 | 1 | Input shaft 2.94:1 |
| 42 | M60-42 | 2 | Hex head screw, M8x100 |
| 43 | M60-43 | 18 | Washer |
| 44 | M60-44 | 8 | Hex head screw, M8x120 |
| 45 | M60-45 | 1 | Hex nut, M8 |
| 46 | M60-46 | 1 | Gasket |
| 47 | M60-47 | 1 | Cover |
| 48 | M60-48 | 1 | Gasket |
| 49 | M60-49 | 1 | Seal |
| 50 | M60-50 | 1 | Cover |
| 51 | M60-51 | 1 | Seal |
| 52 | M60-52 | 1 | Cover |
| 53 | M60-53 | 1 | Cover |
| 54 | M60-54 | 16 | Hex head screw, M8x20 |
| 55 | M60-55 | 1 | Circlip, ø5 |
| 56 | M60-55 | 1 | Pin |
| 57 | M60-57 | 1 | Spring |
| 58 | M60-58 | 1 | Actuating cam shaft |
| 59 | M60-59 | 1 | Gasket |
| 60 | M60-60 | 1 | Cover |
| 61 | M60-61 | 1 | Dowel pin |
| 62 | M60-62 | 1 | Seal |
| 63 | M60-63 | 4 | Hex head screw, M8x25 |
| 64 | M60-64 | 1 | Actuating lever |
| 65 | M60-65 | 1 | Hex head screw, M8x40 |
| 66 | M60-66 | 1 | Hex nut, M8 |
| 67 | M60-67 | 1 | Key, A8x7x25 |
| 68 | M60-68 | 1 | Output coupling |
| 69 | M60-69 | 1 | Spacer |
| 70 | M60-70 | 1 | Dipstick |
| 71 | M60-71 | 1 | Cable bracket |
Note: AR* – As Required
