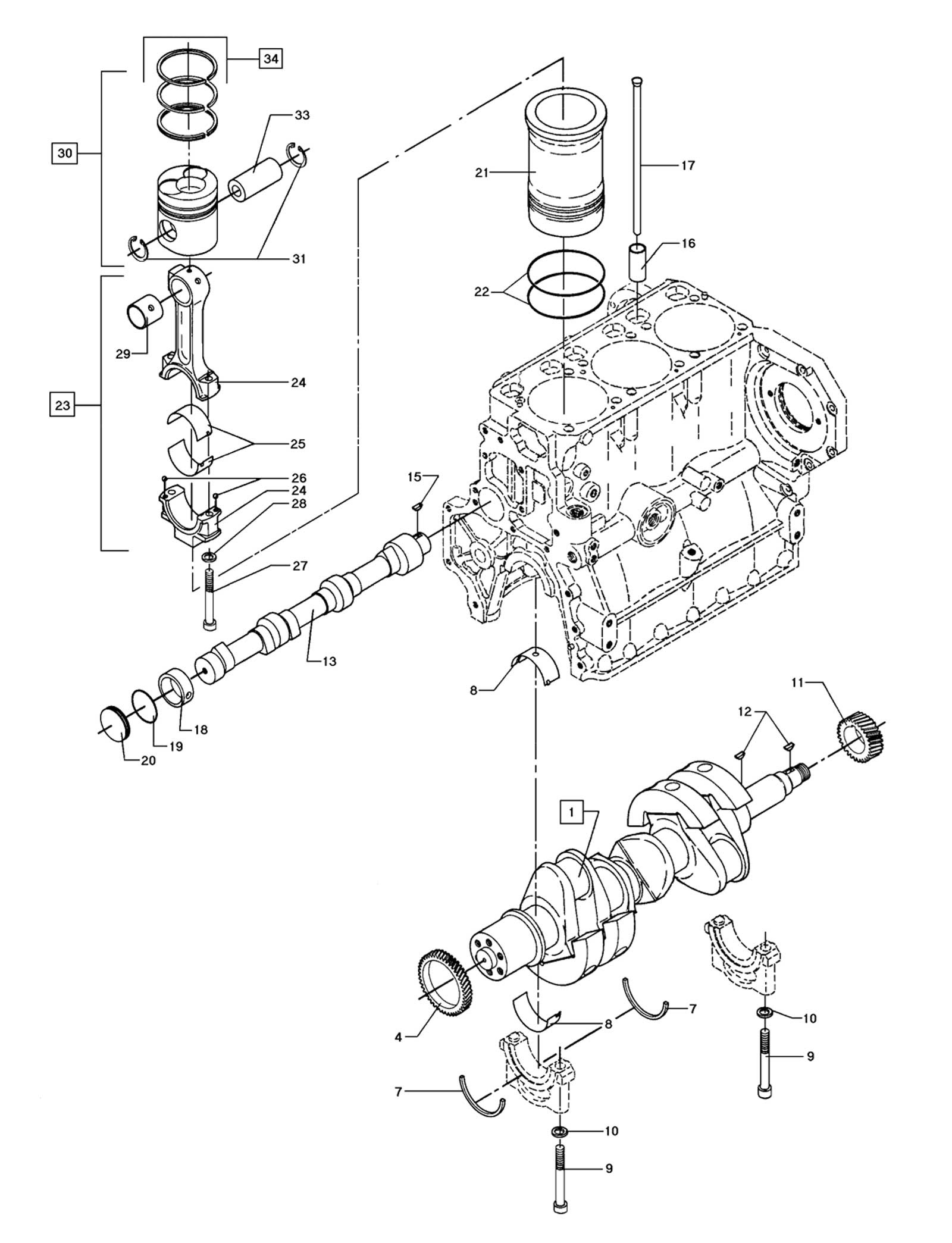

2. Crankshaft, bearings, connecting rod, piston, and cylinder liner
| Pos. |
Part No. |
Qty. |
Description |
| 1 |
033D0101 |
1 |
Crankshaft, complete |
| 4 |
000E4760 |
1 |
Gearwheel, front |
| 7 |
000E4766 |
2 |
Thrust washer |
| 8 |
000E4765 |
4 |
Main bearing liner, standard |
| 8 |
000E5685 |
4 |
Main bearing liner, 0.6 mm undersize |
| 9 |
501A2478 |
8 |
Unbraco screw, M12x100 |
| 10 |
000E4557 |
8 |
Washer |
| 11 |
000E4762 |
1 |
Gearwheel, rear |
| 12 |
521B0190 |
1 |
Woodruff key |
| 13 |
000E4985 |
1 |
Camshaft |
| 13 |
033D0801 |
1 |
Camshaft, cpl. With gearwheel |
| 15 |
521B0163 |
1 |
Woodruff key |
| 16 |
000E4987 |
6 |
Guide for push rod |
| 17 |
000E9455 |
6 |
Push rod |
| 18 |
000E4787 |
1 |
Bearing for camshaft |
| 19 |
560K0044 |
4 |
O-ring |
| 20 |
000E4786 |
1 |
Cover |
| 21 |
000E4788 |
3 |
Cylinder liner |
| 22 |
560K1094 |
6 |
O-ring |
| 24 |
008E6332 |
3 |
Connecting rod, complete |
| 25 |
000E0563 |
3 |
Connecting rod bearing shells, set of |
| 25 |
000E0233 |
3 |
Connecting rod bearing shells, set of (0.6 mm undersize) |
| 26 |
545Ø2061 |
6 |
Ball |
| 27 |
501A2423 |
6 |
Connecting rod bolt |
| 28 |
522E0527 |
6 |
Locking washer |
| 29 |
000E4863 |
3 |
Connecting rod liner |
| 30 |
023D0302 |
3 |
Piston compl. with pin and rings |
| 31 |
522A0032 |
6 |
Circlip 32 DIN 472 |
| 33 |
000E6414 |
3 |
Gudgeon pin |
| 34 |
033D0301 |
3 |
Piston rings, set of |
