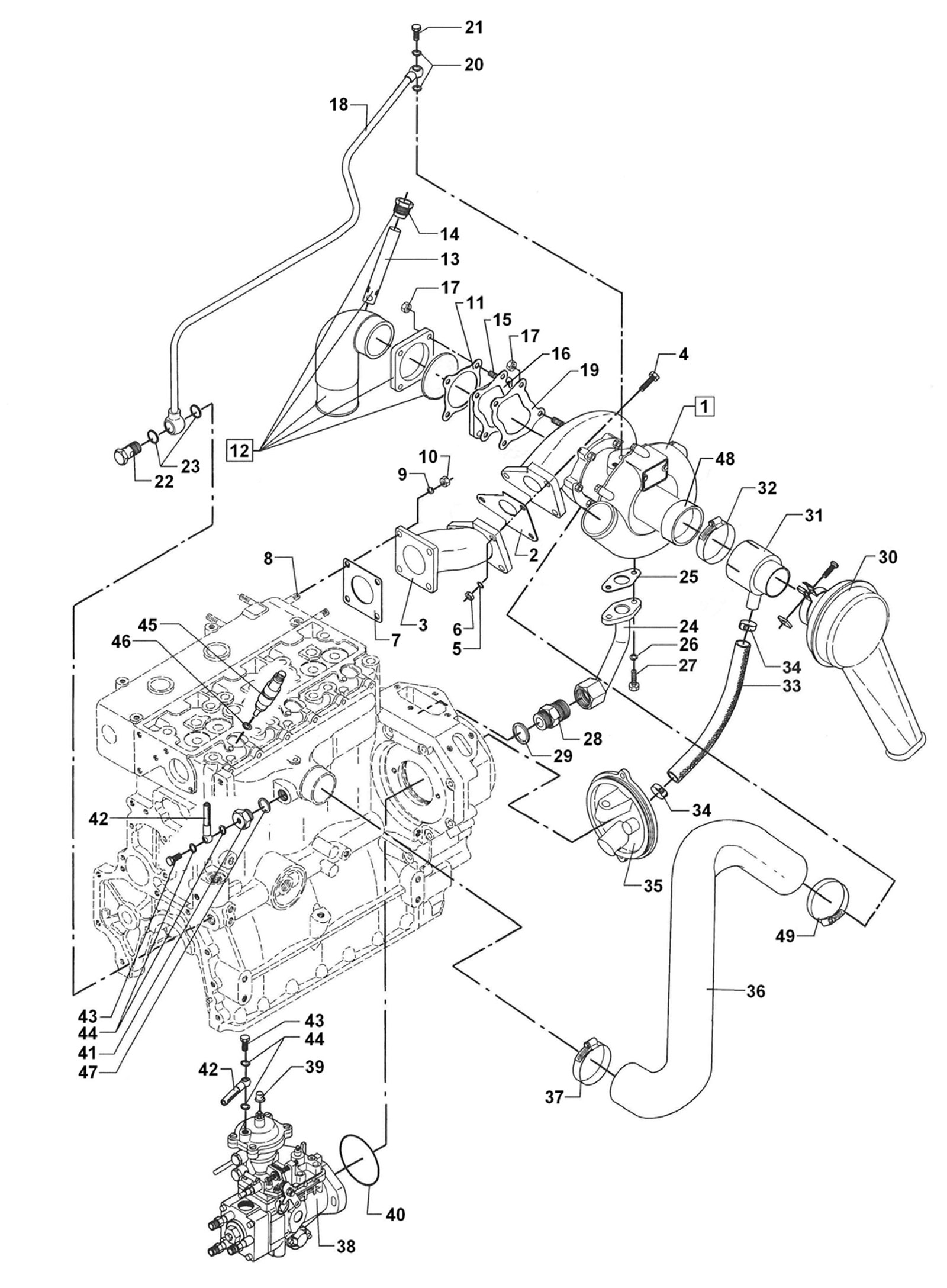

4. Air inlet and turbo charger
| Pos. |
Part No. |
Qty. |
Description |
| 1 |
611L0150 |
1 |
Turbocharger |
| 2 |
611L0102 |
1 |
Gasket for turbocharger |
| 3 |
000E9594 |
1 |
Pipe for turbocharger |
| 4 |
500K2366 |
3 |
Set screw, M8x30, stainless |
| 5 |
522F1020 |
3 |
Spring washer M8 |
| 6 |
511F0258 |
3 |
Nut M8, self-locking stainless |
| 7 |
000E5360 |
1 |
Gasket for exhaust |
| 8 |
503N2367 |
4 |
Stud M8x35 |
| 9 |
522F1020 |
4 |
Spring washer M8 |
| 10 |
511F0258 |
4 |
Nut M8, self-locking stainless |
| 11 |
000E6451 |
1 |
Gasket for exhaust |
| 12 |
008E7411 |
1 |
Exhaust bend, cpl. |
| 13 |
000E5359 |
1 |
Pipe for cooling water outlet |
| 14 |
000E8696 |
1 |
Nut |
| 15 |
503N2367 |
4 |
Stud M8x35 |
| 16 |
000E9595 |
1 |
Intermediate flange |
| 17 |
511F0258 |
7 |
Nut M8, self-locking stainless |
| 18 |
008E8223 |
1 |
Lubr. pipe for turbocharger |
| 19 |
611L0101 |
1 |
Gasket for intermediate flange |
| 20 |
522C3016 |
2 |
Copper gasket, ø12/ø15.5×1.5 |
| 21 |
531Z0160 |
1 |
Banjo bolt |
| 22 |
531Z0056 |
1 |
Banjo bolt |
| 23 |
522C3027 |
2 |
Copper gasket, ø18/ø22×1.5 |
| 24 |
008E9596 |
1 |
Return pipe from turbocharger |
| 25 |
000E8074 |
1 |
Gasket for return pipe |
| 26 |
522F1017 |
2 |
Spring washer M6 |
| 27 |
500C2311 |
2 |
Set screw, M6x16 |
| 28 |
000E8217 |
1 |
Short nipple |
| 29 |
522C3092 |
1 |
Copper gasket, ø26.5/ø32×2.5 |
| 30 |
008E7310 |
1 |
Air filter |
| 31 |
008E8708 |
1 |
Intermediate pipe |
| 32 |
569A0030 |
1 |
Clamping ring, ø33/ø57 |
| 33 |
530P0009 |
1 |
Hose |
| 34 |
569A0010 |
3 |
Clamping ring, ø6/ø16 |
| 35 |
008E8859 |
1 |
Cover with venting valve |
| 36 |
000E8062 |
1 |
Turbocharger hose |
| 37 |
569A0040 |
1 |
Clamping ring, ø59/ø83 |
| 38 |
610A3300 |
1 |
Fuel injection pump |
| 39 |
539K0513 |
1 |
Top cap for nut |
| 40 |
560F1032 |
1 |
O-ring ø51.6×2.4 |
| 41 |
000E6364 |
1 |
Reduction nipple |
| 42 |
008E9811 |
1 |
Hose for charge pressure |
| 43 |
531Z0051 |
2 |
Banjo bolt |
| 44 |
522C3008 |
4 |
Copper gasket, ø8/ø11.5×1 |
| 45 |
610B9250 |
3 |
Nozzle, cpl. |
| 46 |
522C3082 |
3 |
Copper gasket, ø7.5/ø15×1 |
| 47 |
522C3031 |
1 |
Copper gasket, ø21/ø26×1.5 |
| 48 |
000E9598 |
1 |
Spacer |
| 49 |
569A0035 |
1 |
Clamping ring, ø48/ø70 |
