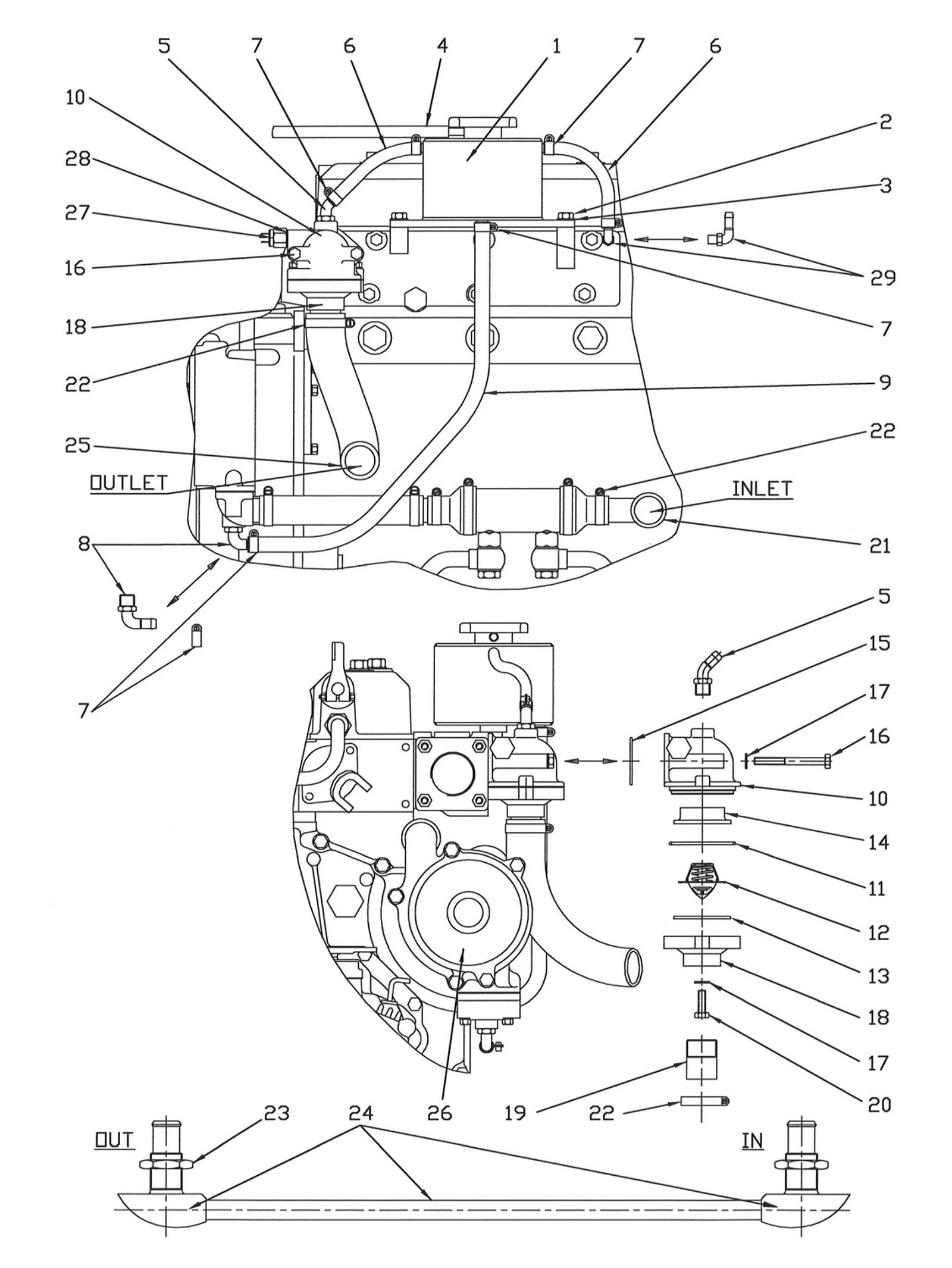

| Pos. |
Part No. |
Qty. |
Description |
| 1 |
008E8659 |
1 |
Expansion tank, compl. |
| 2 |
500C2415 |
2 |
Hex. screw |
| 3 |
522F1023 |
2 |
Spring washer |
| 4 |
530A1215 |
1 |
Hose, 75 cm |
| 5 |
008E8701 |
1 |
Hose nipple with throttle |
| 6 |
530P0011 |
2 |
Hose ø11/ø17 |
| 7 |
569A0010 |
6 |
Clamping ring, rust proof |
| 8 |
532V0335 |
1 |
Hose nipple, elbow |
| 9 |
530P0011 |
1 |
Hose ø11/ø17 |
| 10 |
000E6156 |
1 |
Cap for thermostat |
| 11 |
560K1069 |
1 |
O-Ring |
| 12 |
000E6250 |
1 |
Thermostat |
| 13 |
000E7137 |
1 |
Gasket for thermostat |
| 14 |
530A1745 |
1 |
Ring for thermostat |
| 15 |
560F1031 |
1 |
O-Ring |
| 16 |
500D2376 |
2 |
Machine bolt |
| 17 |
522F1020 |
2 |
Spring washer |
| 18 |
000E8344 |
1 |
Outlet cover |
| 19 |
000E8663 |
1 |
Pipe for thermostat |
| 20 |
500E2366 |
1 |
Hex. screw |
| 21 |
532C0291 |
1 |
Elbow |
| 22 |
569A0025 |
3 |
Clamping ring, rust proof |
| 23 |
000E3778 |
2 |
Nut for keel cooler |
| 24 |
008E5948 |
1 |
Keel cooler, compl. |
| 25 |
530A1746 |
1 |
Hose ø32/ø42 |
| 26 |
008E6560 |
1 |
Ciculation pump, compl. |
| 27 |
552J0918 |
1 |
Temperature sender, 100°C |
| 28 |
522C3021 |
1 |
Gasket, copper |
| 29 |
532V0331 |
1 |
Hose nipple, elbow |
