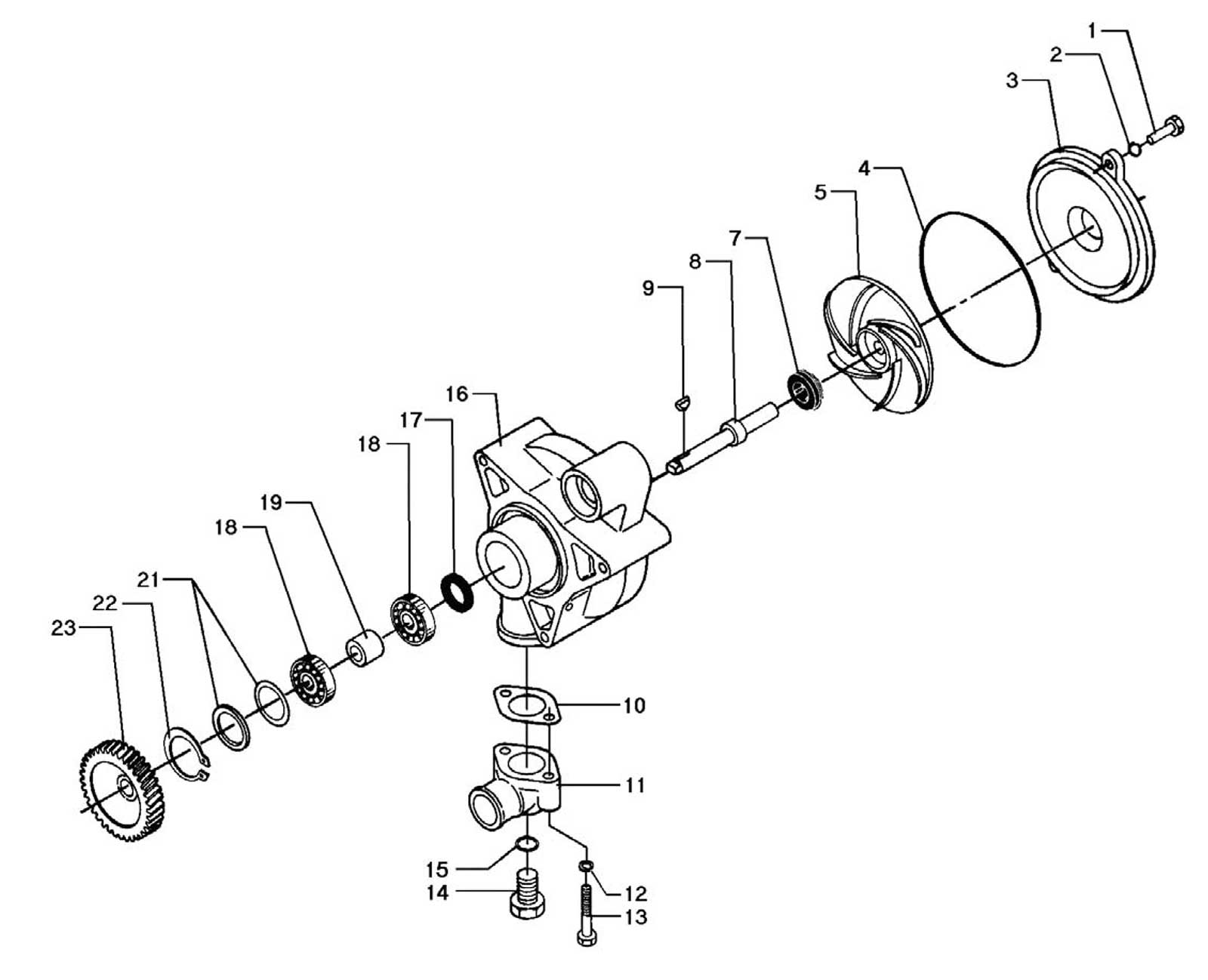

6. Cirkulation pump
| Pos. | Part No. | Qty. | Description |
|---|---|---|---|
| 1 | 500C2363 | 2 | Set screw, M8x20 DIN 933 |
| 2 | 522F1020 | 2 | Spring Washer |
| 3 | 000E4934 | 1 | Cover for circulation pump |
| 4 | 560K1119 | 1 | *) O-ring |
| 5 | 000E4933 | 1 | *) Rotor for circulation pump |
| 7 | 530Q9972 | 1 | *) Water pump seal |
| 8 | 000E5283 | 1 | *) Shaft for circulation pump |
| 9 | 521B0130 | 1 | Feder Key |
| 10 | 000E4726 | 1 | Gasket for elbow |
| 11 | 000E6168 | 1 | Elbow |
| 12 | 522F1020 | 2 | Spring Washer |
| 13 | 500D2368 | 2 | Machine screw, M8x40 DIN 931 |
| 14 | 009R2012 | 1 | Plug 3/8″ BSP |
| 15 | 522C3025 | 1 | Gasket, copper |
| 16 | 000E5282 | 1 | Housing for circulation pump |
| 17 | 561B0201 | 1 | *) Oil seal ring |
| 18 | 545A3129 | 2 | Ball bearing |
| 19 | 000E5284 | 1 | Distance pipe |
| 21 | 522A9022 | 1 | Seeger support washer |
| 22 | 522A0042 | 1 | Seeger-ring I42x1,75 |
| 23 | 000E6252 | 1 | Gear wheel for water pump |
Repair kit
*) Parts, which form part of repair kit
