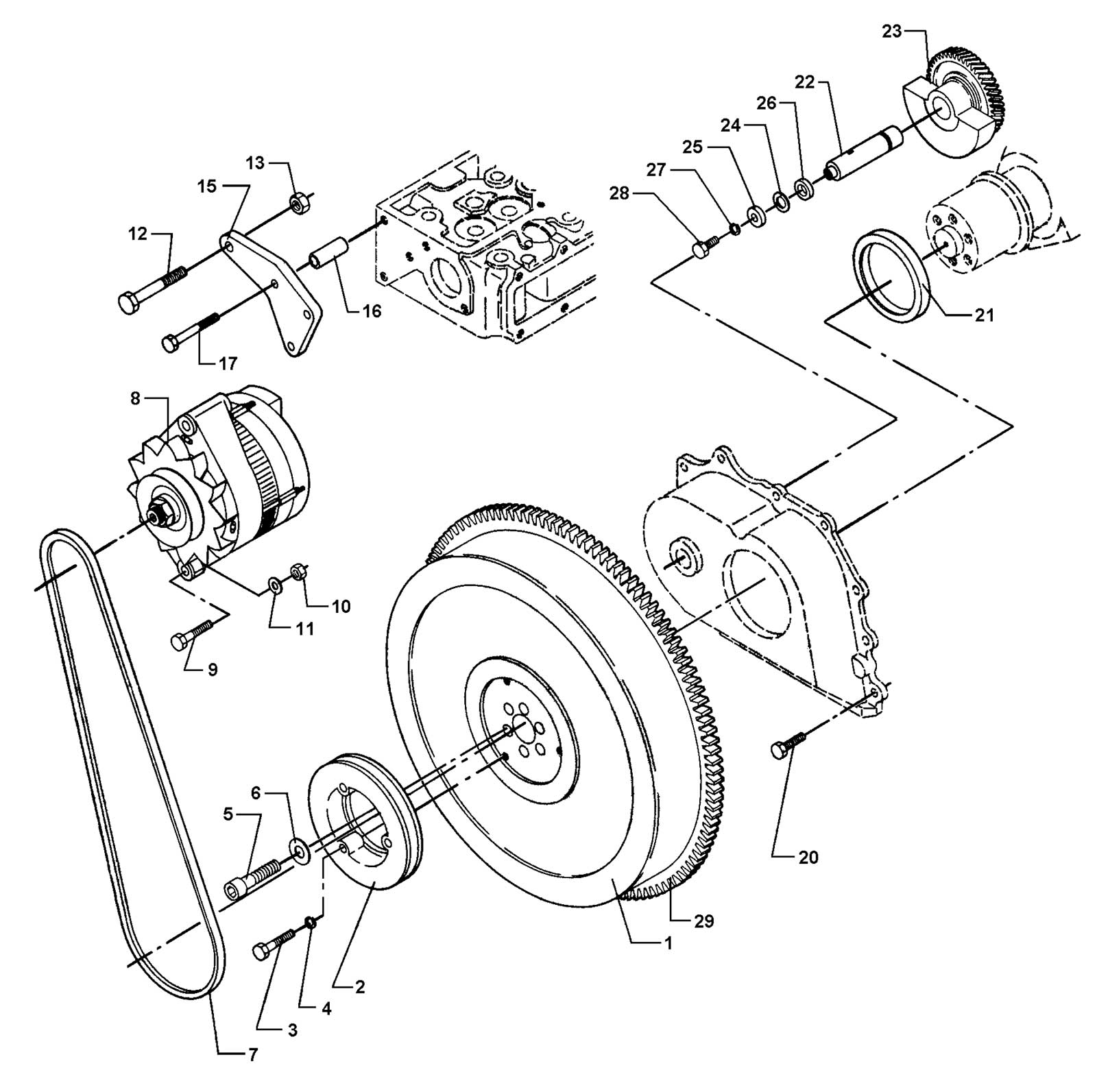

7. Flywheel and front end rotating weight
| Pos. |
Part No. |
Qty. |
Description |
| 1 |
008E7312 |
1 |
Flywheel with gearrim |
| 2 |
000E4931 |
1 |
V-belt pulley |
| 3 |
500D2368 |
3 |
Machine screw, M8x40 DIN 931 |
| 4 |
522F1020 |
3 |
Spring washer, 8mm DIN 7980 |
| 5 |
501A3217 |
6 |
Unbraco screw, M12x1.5×50 |
| 6 |
000E4557 |
6 |
Washer |
| 7 |
542A0609 |
1 |
V-belt |
| 8 |
612H0520 |
1 |
Charging alternator, 14V |
| 8 |
612H0570 |
1 |
Charging alternator, 14V with double charging diode |
| 9 |
500D2367 |
1 |
Machine screw, M8x35 DIN 931 |
| 10 |
510A1208 |
1 |
Nut M8 DIN 934 |
| 11 |
522C1223 |
1 |
Washer |
| 12 |
501A2425 |
1 |
Unbraco screw, M10x75 DIN 912 |
| 13 |
511A2209 |
1 |
Nyloc nut M10 |
| 15 |
000E7579 |
1 |
Brachet for charging alternator |
| 16 |
000E7580 |
4 |
Distance piece |
| 17 |
500D2371 |
3 |
Machine screw, M8x55 DIN 931 |
| 18 |
000E4817 |
1 |
Gasket for front end cover |
| 20 |
500C2363 |
9 |
Set screw, M8x20 DIN 933 |
| 21 |
561B0706 |
1 |
Oil seal ring, ø70/95×12 |
| 22 |
000E4794 |
1 |
Shaft for rotating weight |
| 23 |
008E4800 |
1 |
Rotating weight, complete |
| 24 |
000E3225 |
4 |
Thrust collar (nylon) |
| 25 |
000E3226 |
4 |
Intermediate disc |
| 26 |
000E4798 |
1 |
Washer |
| 27 |
522F1020 |
1 |
Spring washer |
| 28 |
500C2363 |
1 |
Set screw, M8x20 DIN 933 |
| 29 |
000E2364 |
1 |
Gearrim |
