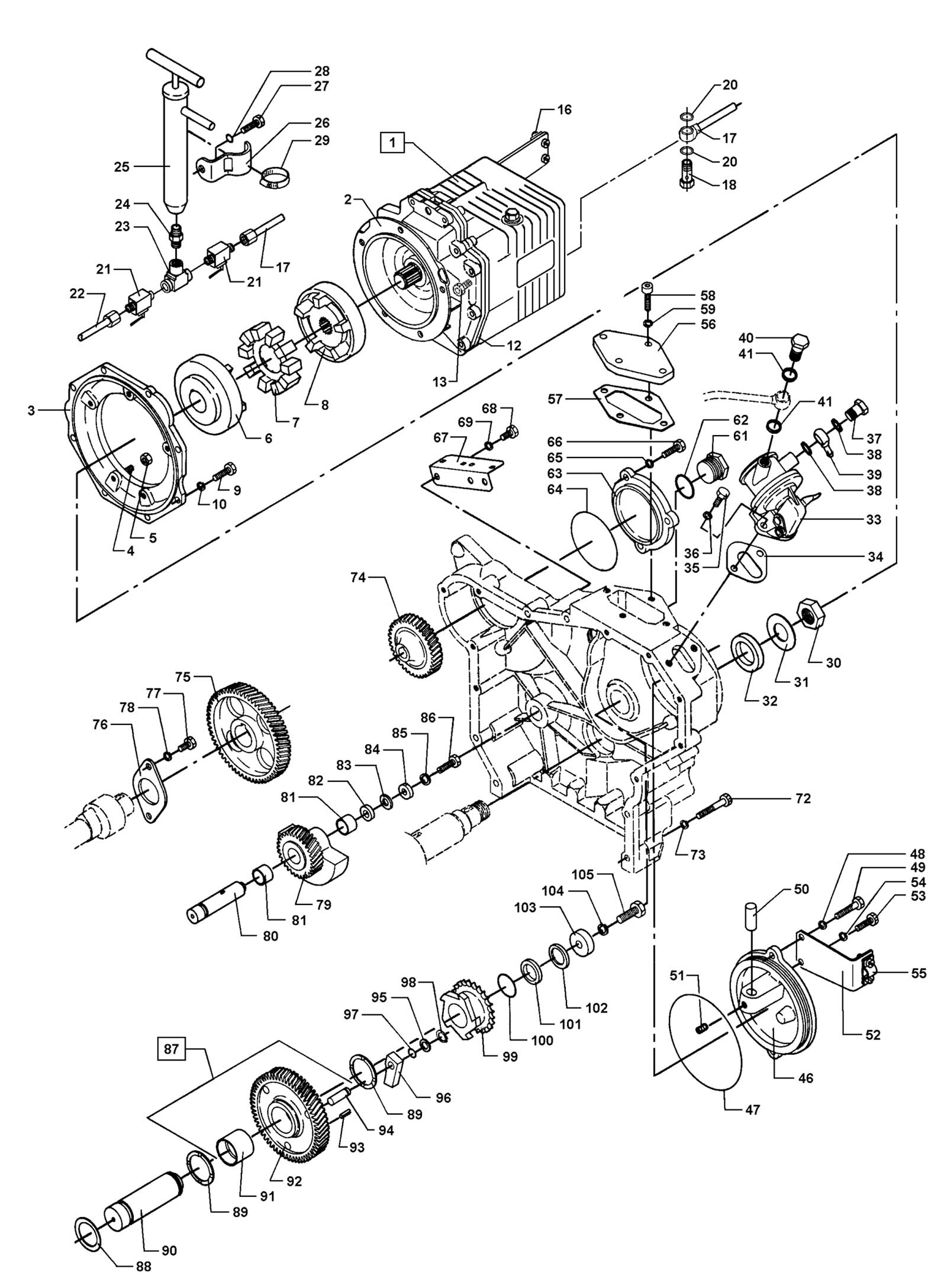

8. Rear end rotating weight and fuel lift pump
| Pos. |
Part No. |
Qty. |
Description |
| 1 |
620A5100 |
1 |
Reverse-reduction gear 3:1 |
| 2 |
000E9790 |
1 |
Intermediate cover |
| 3 |
000E4941 |
1 |
Intermediate piece |
| 4 |
503N2361 |
5 |
Stud |
| 5 |
510A1208 |
5 |
Nut |
| 6 |
000E6039 |
1 |
Flexible coupling with cone |
| 7 |
000E6036 |
1 |
Clutch element |
| 8 |
000E7531 |
1 |
Flexible coupling with spline |
| 9 |
500C2363 |
8 |
Set screw |
| 10 |
522F1020 |
8 |
Spring washer |
| 12 |
501A2365 |
2 |
Unbraco screw |
| 13 |
501F2363 |
4 |
Unbraco screw |
| 16 |
544A0320 |
1 |
Clamp |
| 17 |
000E9791 |
1 |
Pipe, gear – bilge pump |
| 18 |
531Z0055 |
1 |
Banjo bolt |
| 20 |
522C3023 |
2 |
Gasket, copper |
| 21 |
530B0008 |
2 |
Cock |
| 22 |
000E6018 |
1 |
Pipe, oil sump – bilge pump |
| 23 |
530B0009 |
1 |
T-piece |
| 24 |
532R1010 |
1 |
Hexagon nipple |
| 25 |
529V9960 |
1 |
Hand pump with nipple |
| 26 |
000E6355 |
1 |
Fittings for oil bilge pump |
| 27 |
500C2361 |
1 |
Set screw |
| 28 |
522F1020 |
1 |
Spring washer |
| 29 |
569A0023 |
1 |
Clamping ring |
| 30 |
000E6817 |
1 |
Nut |
| 31 |
522C0370 |
1 |
Washer |
| 32 |
561B0356 |
1 |
Oil seal ring |
| 33 |
610C0120 |
1 |
Fuel lift pump |
| 34 |
000E4784 |
1 |
Gasket for lift pump 0.4 mm |
| 35 |
500C2363 |
2 |
Set screw |
| 36 |
522F1020 |
2 |
Spring washer |
| 37 |
531Z0053 |
1 |
Banjo bolt |
| 38 |
522C3016 |
2 |
Gasket, copper |
| 39 |
000E6460 |
1 |
Banjo |
| 40 |
531Z0053 |
1 |
Banjo bolt |
| 41 |
522C3016 |
2 |
Gasket, copper |
| 46 |
008E8859 |
1 |
Cover with airing valve |
| 47 |
560K0124 |
1 |
O-ring |
| 48 |
522F1020 |
2 |
Spring washer |
| 49 |
500C2363 |
2 |
Set screw |
| 50 |
000E4844 |
1 |
Guide for push rod |
| 51 |
501B2309 |
1 |
Pointed screw |
| 52 |
000E5251 |
1 |
Bracket f. control of engine |
| 53 |
500C2359 |
1 |
Set screw |
| 54 |
522F1020 |
1 |
Spring washer |
| 55 |
544A0320 |
1 |
Clamp |
| 56 |
000E6736 |
1 |
Cover |
| 57 |
000E5099 |
1 |
Gasket for chain case |
| 58 |
501A2365 |
4 |
Unbraco screw |
| 59 |
522F1020 |
4 |
Spring washer |
| 61 |
009R2015 |
1 |
Plug 3/4″ BSP |
| 62 |
522C3044 |
1 |
Gasket, copper |
| 63 |
000E4942 |
1 |
Cover |
| 64 |
560K0079 |
1 |
O-ring |
| 65 |
522F1020 |
3 |
Spring washer |
| 66 |
500C2363 |
3 |
Set screw |
| 67 |
000E5174 |
1 |
Bracket for multiple plug |
| 68 |
500C2361 |
2 |
Set screw |
| 69 |
522F1020 |
2 |
Spring washer |
| 72 |
500D2368 |
9 |
Machine bolt |
| * |
500D2369 |
1 |
Machine bolt |
| 73 |
522F1020 |
9 |
Spring washer |
| 74 |
000E6252 |
1 |
Gearwheel f. cooling water pump |
| 75 |
000E4839 |
1 |
Gearwheel f. camshaft |
| 76 |
000E4922 |
1 |
Axial bearing |
| 77 |
500C2361 |
2 |
Set screw |
| 78 |
522F1020 |
2 |
Spring washer |
| 79 |
008E4795 |
1 |
Rotating weight compl rear |
| 80 |
000E4794 |
1 |
Shaft for rotating weight |
| 81 |
000E5236 |
4 |
Bush |
| 82 |
000E3225 |
1 |
Thrust collar for shaft |
| 83 |
000E3226 |
1 |
Intermediate washer |
| 84 |
000E4798 |
1 |
Washer |
| 85 |
522F1020 |
1 |
Spring washer |
| 86 |
500C2363 |
1 |
Set screw |
| 87 |
033D0202 |
1 |
Intermediate wheel complete |
| 88 |
522A9245 |
1 |
Washer |
| 89 |
000E5050 |
2 |
Pressure washer |
| 90 |
000E4802 |
1 |
Shaft for intermediate wheel |
| 91 |
000E4804 |
1 |
Bush for intermediate wheel |
| 92 |
000E4778 |
1 |
Intermediate wheel |
| 93 |
520H0409 |
3 |
Retainiing pin |
| 94 |
000E4805 |
3 |
Pin |
| 95 |
522A9706 |
3 |
Spring ring |
| 96 |
000E4806 |
3 |
Pawl |
| 97 |
522A9010 |
3 |
Support washer |
| 98 |
522A1010 |
3 |
Circlip |
| 99 |
000E4807 |
1 |
Pawl wheel |
| 100 |
560F1022 |
1 |
O-ring |
| 101 |
000E4808 |
1 |
Thrust collar |
| 102 |
000E4809 |
1 |
Intermediate washer |
| 103 |
000E4810 |
1 |
Washer for intermediate shaft |
| 104 |
522F1023 |
1 |
Spring washer |
| 105 |
500C2415 |
1 |
Set screw |
