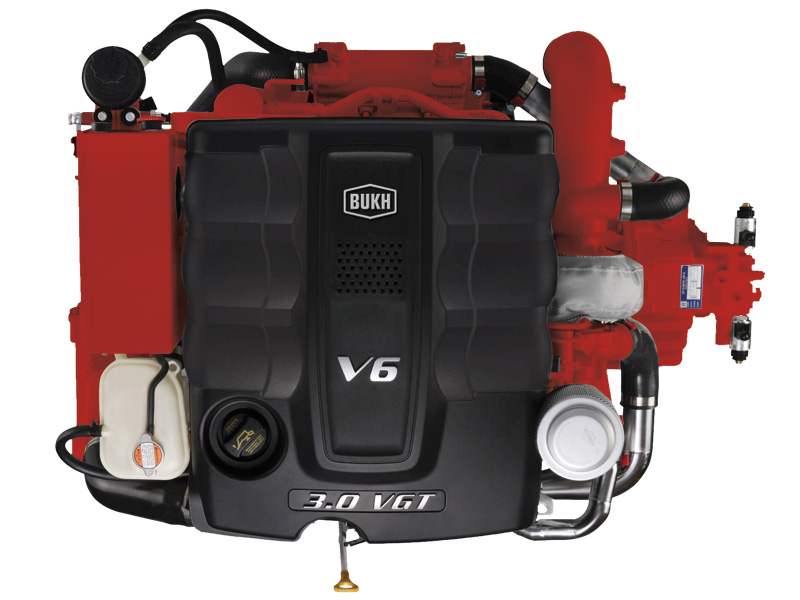

BUKH S270

BUKH solas marine engine

270ps (198kW) ace. to ISO 8665

Piezo controlled common rail injection system delivers 270ps and 50kg-m torque from the 3.0 liter V6 Common Rail Direct Injection (CRDI) engine. Advanced design also makes it ultra light, quiet and fuel efficient with its dimensions extremely compact.

Durability and Reliability Advantageous is the use of Compacted Graphite Iron (CGI) for the cylinder block. The CGI block is lighter and quieter than conventional grey cast iron and demonstrates at least 80 percent higher tensile strength, 45 percent higher stiffness and approximately double the fatigue strength of iron and aluminium. It lasts longer than anyone of us ever expected. It is the source of innovation and improvement in the marine engine industry.

Marine Gear
Model ZF 45 C for S270J:
Gear Ratio 1:1
Weight [kg] 31
Technical Description

Material

  • Compacted Graphite Iron (CGI) cylinder block
  • Aluminium head
  • Nine balance weight crank shaft
  • Oil cooled piston
  • V6 4 valve DOHC
  • Hydraulic lash adjusters
  • Integrated water jacket
  • Low noise duplex timing chain
  • Hydraulic timing chain tensioner
  • One-serpentine belt system
  • Drive belt auto tensioner

Engine Mounting

  • Adjustable engine mount

Lubrication System

  • Easily exchangeable oil filter cartridge
  • Electric oil extraction pump
  • Seawater cooled oil cooler
  • Chain drive engine oil pump

Fuel System

  • Common rail direct injection (Solenoid injector)
  • Fuel filter with sensor detecting water in fuel
  • Electric low pressure pump
  • Dual pressure control valve
  • High pressure fuel pump

Electrical System

  • 12 volt system and 150A alternator
  • Auxiliary engine stop button
  • Glow plugs for a trouble-free cold start

Cooling System

  • Camshaft directly connected to seawaterpump
  • Seawater cooled intercooler, heat exchanger
  • Auxiliary connector for cabin heater
  • Anti-corrosion materials for seawater path

Engine Operating Indicator

  • Engine self protection and diagnosis
  • Display CAN information
  • Display engine diagnostic error code
  • Audible alarm and control lamps

Air inlet System

  • Reusable airfilter

Exhaust System

  • Engine coolant cooled exhaust manifold
  • Thermal insulated exhaust system
  • Seawater cooled exhaust elbow

Turbocharger

  • Electric Variable Geometry Turbine (E-VGT)

Engine Coupler

  • Life-Iong and rattle free rubber roller coupler for sterndrive
  • orsion spring type for gearbox

Emissions

  • EPA Tier 2, IMO and RCD compliant

Pass-by Noise Level

  • 69.0dB (RCD Standard 75dB)
